VAC4000
Manual Rewind Industrial Vacuum Reels
To handle 1-1/2" ID industrial vacuum hose
Shop Vacuum Applications/Car Detailing/Dust and Debris Collection Only
- Standard inlet/outlet accepts 1 ½” vacuum hose. Standard inlet/outlet are slip fit connections, not threaded connections.
- Includes permanently attached crank handle and cam-lock drag brake.
- Declutching arbor to prevent damage from reverse winding.
- Roll-formed channel frame for heavy duty applications.
- Constructed of heavy duty steel.
NOTE: These reels are NOT for solid or liquid suction. Please refer to our Pumper Cleaner Catalog for reel options for solid or liquid applications. Model shown standard configuration (hose not included)
Jump to:
Reel Capacity, Dimensions and Details
Reel Capacity, Dimensions and Details
Reel Capacity:
Show:
Rewind Option:
Show:
Measurements: Standard / Metric

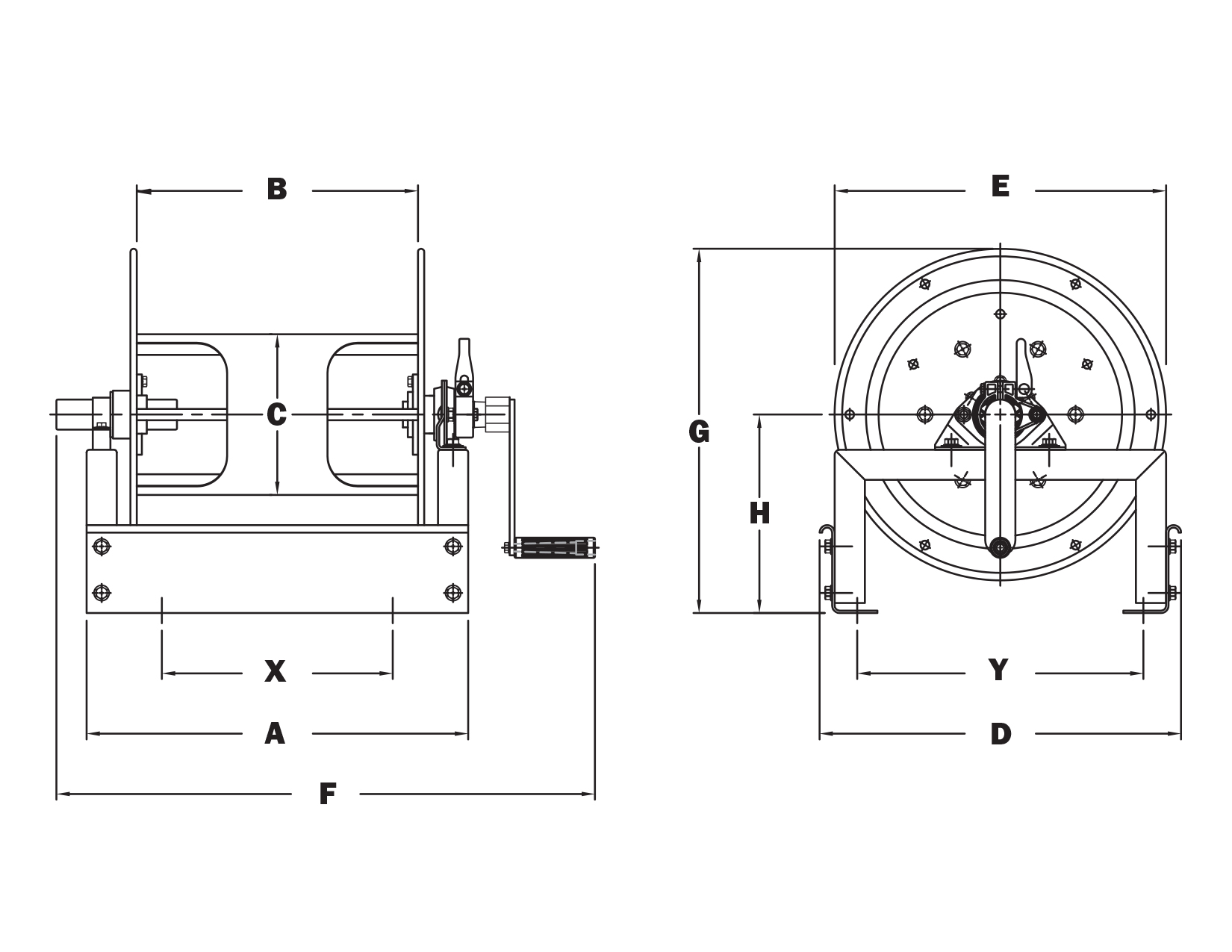

| MODEL | REEL CAPACITY (ft / lbs) | REEL DIMENSIONS (inches) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | Length | Weight | A | B | C | D | E | F | G | H | X | Y | Relative Size | |
| VAC4020-17-18-8 | 1-1/2 ID | 25 | 38 | 17 | 12 | 8 | 18 | 16.5 | 24.88 | 18.13 | 9.88 | 9.5 | 14.25 | |
| VAC4024-17-18-8 | 1-1/2 ID | 35 | 42 | 21 | 16 | 8 | 18 | 16.5 | 28.88 | 18.13 | 9.88 | 13.5 | 14.25 | |
| VAC4028-17-18-8 | 1-1/2 ID | 50 | 46 | 25 | 20 | 8 | 18 | 16.5 | 32.88 | 18.13 | 9.8 | 17.5 | 14.25 | |
| No results available based on the combination of filters chosen above. Please choose a different combination of Reel Capacity/Rewind Option to show more results. | ||||||||||||||
- Specifications subject to change.
- Upon request, reels can be supplied with drum lengths other than shown.
- Dimension “F” is the overall length of standard model reels.
- Be sure to check dimensions and weights prior to ordering.
