C20-14-16
Portable Storage Reels
Extension Cord / Broadcast Cable / Forestry or Standard Lay Flat Hose / Rope
- Strong, portable.No live connections.
- Adjustable cam-lock drag brake.
- Permanent crank rewind.
- Optional pin lock available.
- Optional storage drum extension available (must specify when ordering) click here for more information.
- Equipped with one durable rubber twist tie for cable ends. “DE” models equipped with two ties.
Model shown in image above represents standard configuration
Jump to:
Reel Capacity, Dimensions and Details
ISO Parts Drawing
Service Information
Reel Capacity, Dimensions and Details
Reel Capacity:
Show:
Rewind Option:
Show:
Measurements: Standard / Metric

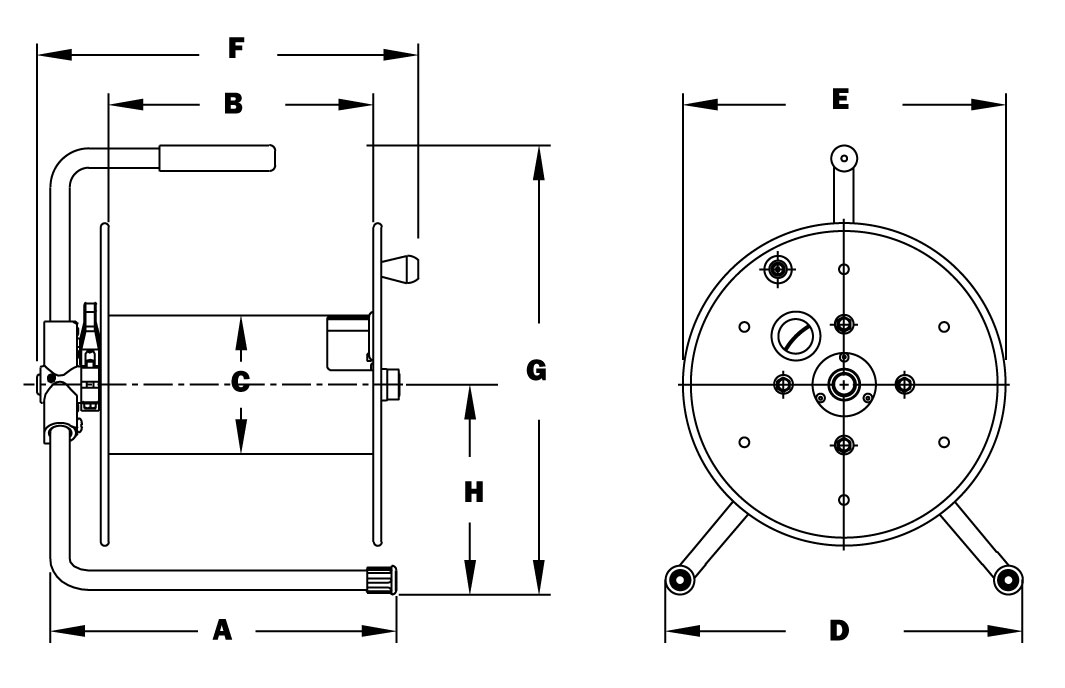

| MODEL | REEL CAPACITY (ft / lbs) | REEL DIMENSIONS (inches) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | Length | Weight | A | B | C | D | E | F | G | H | X | Y | Relative Size | |
| C20-14-16 | 14/3 Cord | 350 | 18 | 15 | 12 | 6 | 15.5 | 14 | 16.75 | 19 | 8.62 | - | - | |
| C20-14-16 | 12/3 Cord | 250 | 18 | 15 | 12 | 6 | 15.5 | 14 | 16.75 | 19 | 8.62 | - | - | |
| C20-14-16 | 0.38 OD | 725 | 18 | 15 | 12 | 6 | 15.5 | 14 | 16.75 | 19 | 8.62 | - | - | |
| C20-14-16 | 0.41 OD | 600 | 18 | 15 | 12 | 6 | 15.5 | 14 | 16.75 | 19 | 8.62 | - | - | |
| C20-14-16 | 0.45 OD | 450 | 18 | 15 | 12 | 6 | 15.5 | 14 | 16.75 | 19 | 8.62 | - | - | |
| C20-14-16 | 0.50 OD | 425 | 18 | 15 | 12 | 6 | 15.5 | 14 | 16.75 | 19 | 8.62 | - | - | |
| C20-14-16 | 0.58 OD | 250 | 18 | 15 | 12 | 6 | 15.5 | 14 | 16.75 | 19 | 8.62 | - | - | |
| No results available based on the combination of filters chosen above. Please choose a different combination of Reel Capacity/Rewind Option to show more results. | ||||||||||||||
- Specifications subject to change.
- No live connections.
- Be sure to check dimensions and weights prior to ordering.
